High-accuracy hard-wired probe

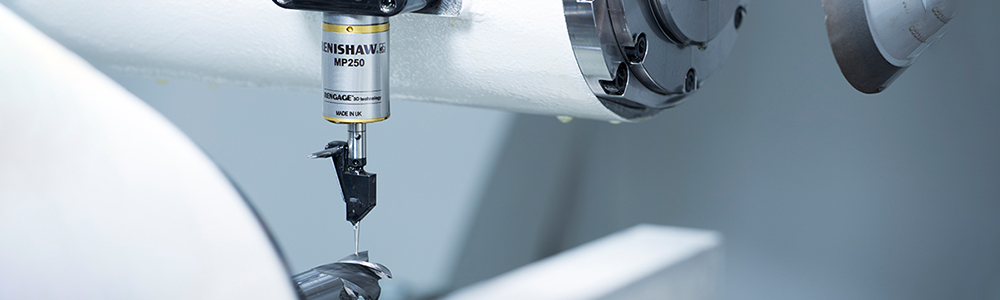

MP250 is a hard-wired probe best suited for particle-laden environments commonly found in grinding applications. For high vibration applications, the probe can be switched to a more vibration-resistant configuration.

Designed for a minimal footprint and maximum capability, the miniature and versatile MP250 is just 25 mm in diameter and 36 mm in length – providing process control even in the smallest and most harsh machining environments.

RENGAGE technology for exceptionally reliable measurement over a long service life.
Battery and interference free with hard-wired connection as standard.
Unidirectional repeatability of 0.25 µm 2σ.

Increase probing flexibility by pairing the MP250 with the HPGA tool setting arm – a highly repeatable, automated rotary platform, configured to move the probe in and out of the working environment in between cycles.
